EL901-AF-2422GS-400 POE Switch
Bandwidth: 12.8Gbps, IEEE802.3af/at standard
Total power 400W, Single Port Max. 30W;
mode: VLAN,Extend,Standard;
QoS: port1~port8
Port anti-lightning 4kv,ESD 8kv; Power anti-lightning 4kv;
PoE watch dog;
Power supplier: 52V/7.69A
rack 1U, wall-mount;
- Product Details
- Specifications
- Download
- Order Model

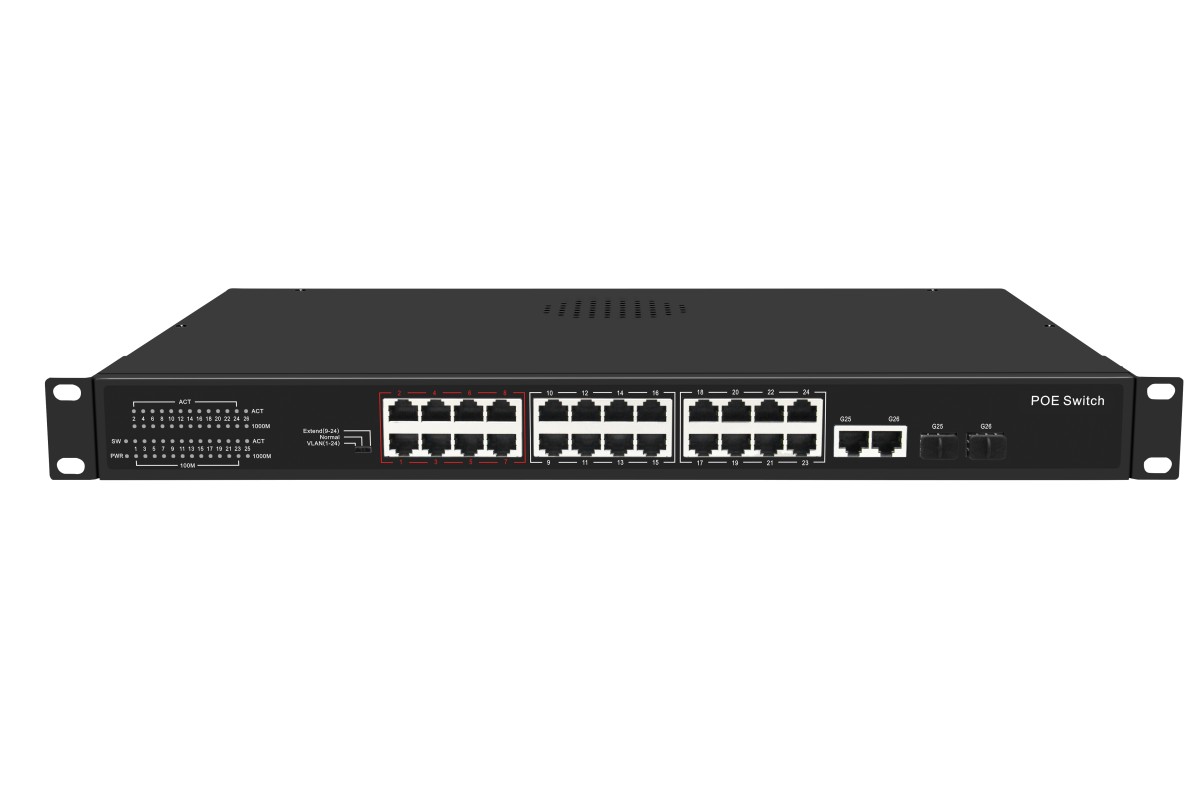

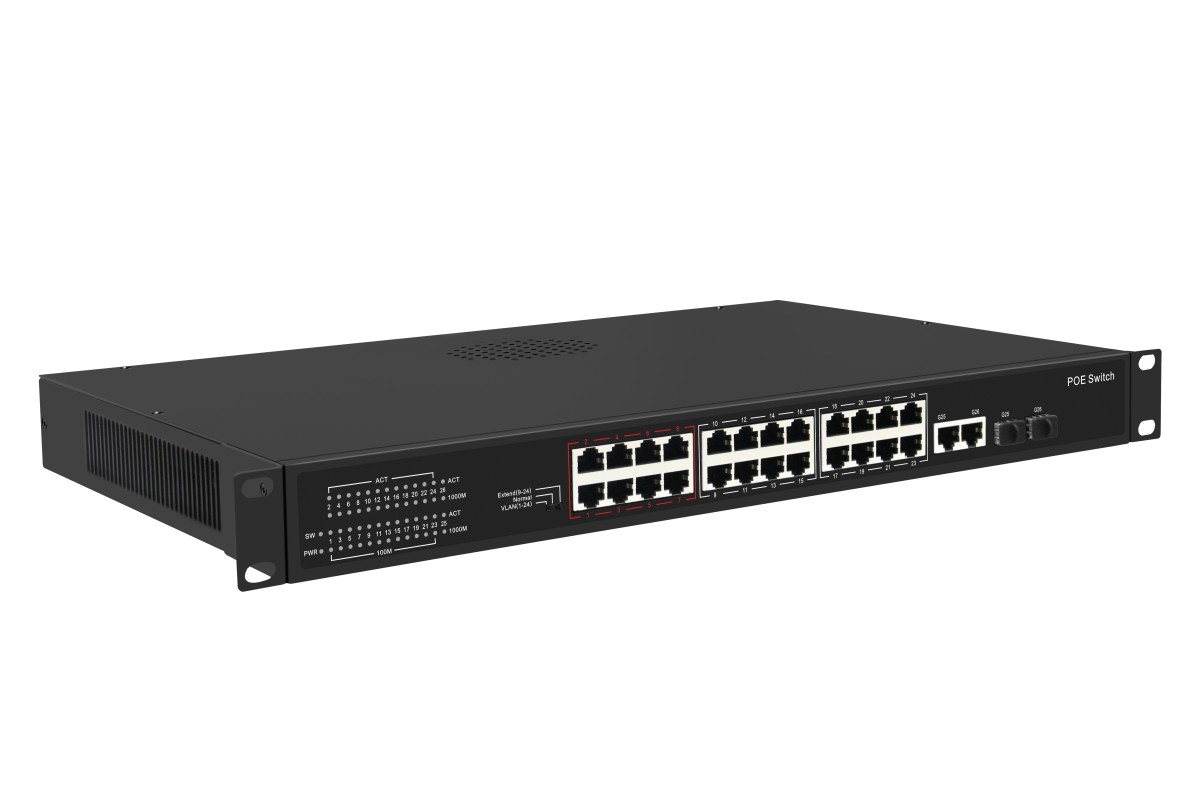

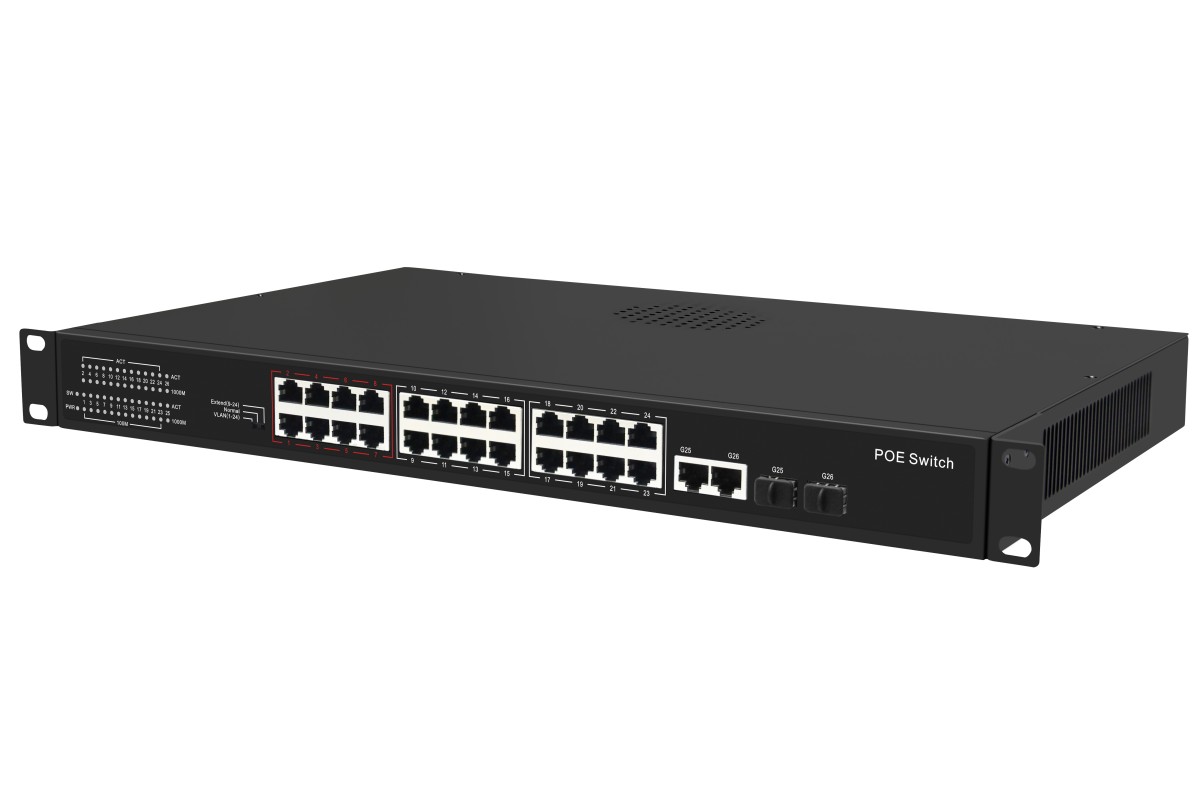

26-Ports PoE Switch with 24 PoE 10/100M Ports +2 Gigabit TP/SFP Combo Uplink
Product Name |
26-Ports PoE Switch with 24 PoE 10/100M Ports +2 Gigabit TP/SFP Combo Uplink |
|||||||||
Model |
EL901-AF-2422GS-400 |
|||||||||
Connector Type |
24* copper cable RJ45 ports (24*10/100M PoE ports), 2*Gigabit Uplink Combo TP/SFP port |
|||||||||
Optical |
Multi mode fiber: 1310nm, 2Km Single mode fiber: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
|||||||||
Performance Specification |
Bandwidth: 12.8 Gbps (non-blocking) |
|||||||||
MAC: 16K |
||||||||||
Packet Buffer Memory: 4M |
||||||||||
100M Packet Forwarding Rate: 0.1488Mpps/port 1000M Packet Forwarding Rate: 1.488Mpps/port |
||||||||||
MTBF: 100,000 hours |
||||||||||
Port Lightning Protection |
Common mode: 2KV, Differential mode: 1KV ESD: air 15KV, touch 8KV |
|||||||||
Network Protocols |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
|||||||||
PoE Standard |
IEEE 802.3af/at( each port 15.4W / 30W) |
|||||||||
POE Compatibility |
IEEE 802.3af/at adaptive |
|||||||||
POE power output |
DC48V |
|||||||||
Power Supply |

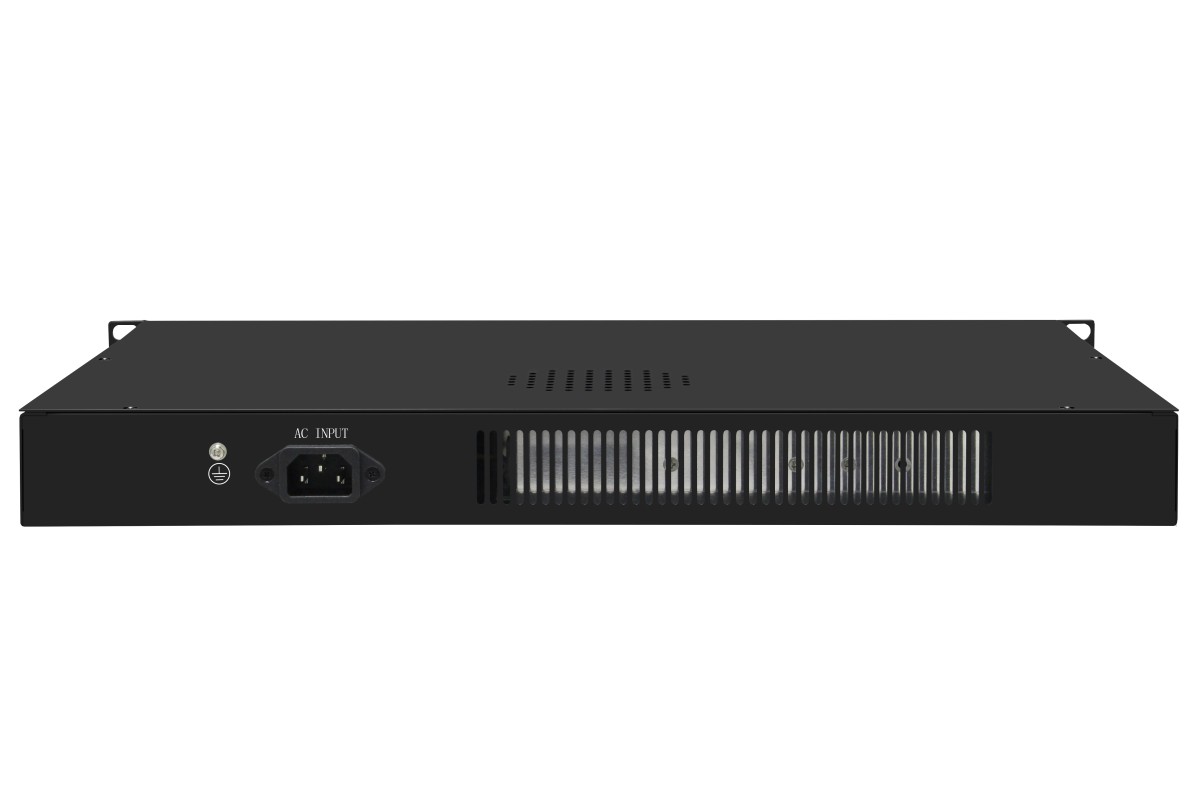

Power input: AC110-264V 50/60Hz; (every country use a custom power plug) |
|||||||||
PoE power pin |
12+,36- ( 45+,78- Optional) |
|||||||||
PoE Port Power |
15.4W /30W for each POE port |
|||||||||
PoE Feature |
All ports support MDI/MDIX |
|||||||||
PoE Ports |

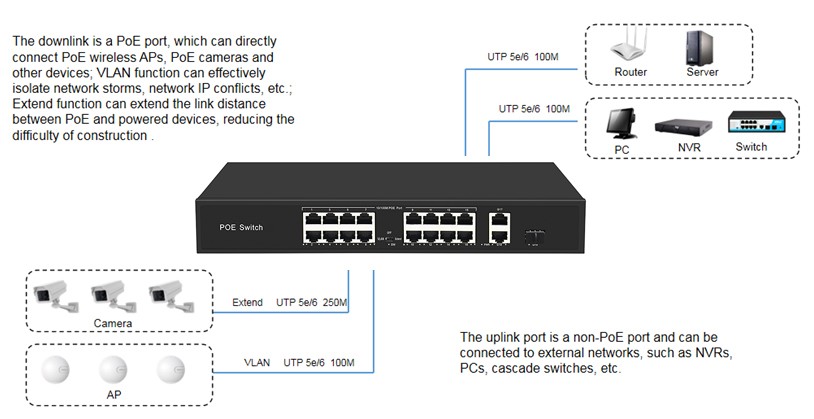

1-24 ports support PoE; 1-8 ports support QOS, 9-24 ports support Extend 250mtrs, 1-24 ports support VLAN |
|||||||||
One Key Smart Toggle Code |
VLAN,OFF(normal), Extend |
|||||||||
Network Protocols |
Support IEEE802.3, IEEE802.3u, IEEE802.3x |
|||||||||
Network Media |
10BASE-T: Cat6 UTP(≤250 meter) ; 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
|||||||||
LED Indicator |
|
|||||||||
Working Environment |
Operating Temperature: -20 ° ~ 55° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: max 90%, non-condensing Storage Humidity: Max 95%, non-condensing |
|||||||||
Certification |
CE, CCC, FCC, RoHs |
|||||||||
Transmission Distance |
POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more ) Uplink transmission distance: 100meters( Uplink RJ45 port); Depend on your SFP module( Uplink SFP port) |
|||||||||
Others |
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard; Support port auto flip (Auto MDI/MDIX); Exchange mechanism using store-and-forward; All ports support wire-speed switching; Automatically supplied to adaptive devices; Panel indicator monitoring status and help failure analysis; |
|||||||||
Installation |
Desktop, compatible to Rack 1U |
|||||||||
Physical |
Dimension (L×W×H): 410mm*185mm*50mm Package (L×W×H): 500mm*350mm*90mm Product Weight: 3.2kgs Package Weight: 3.9kgs |
|||||||||
Warranty |
2 years warranty |
