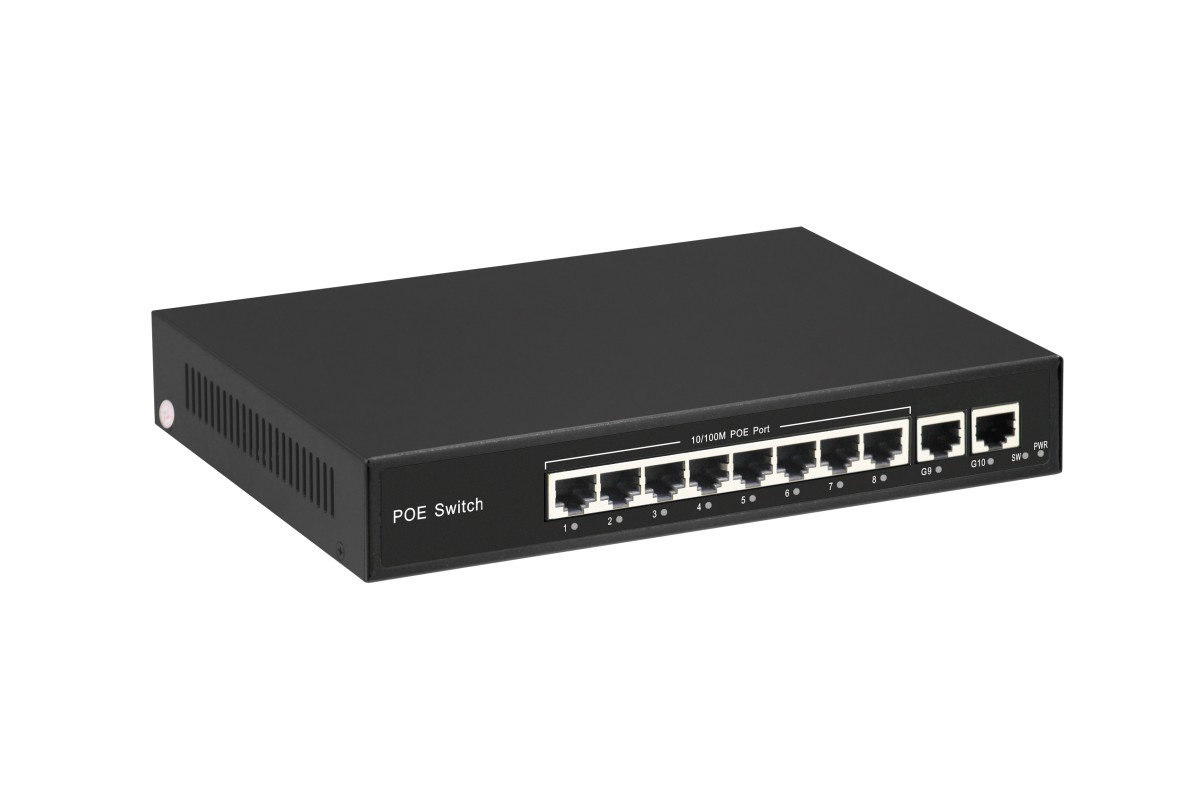

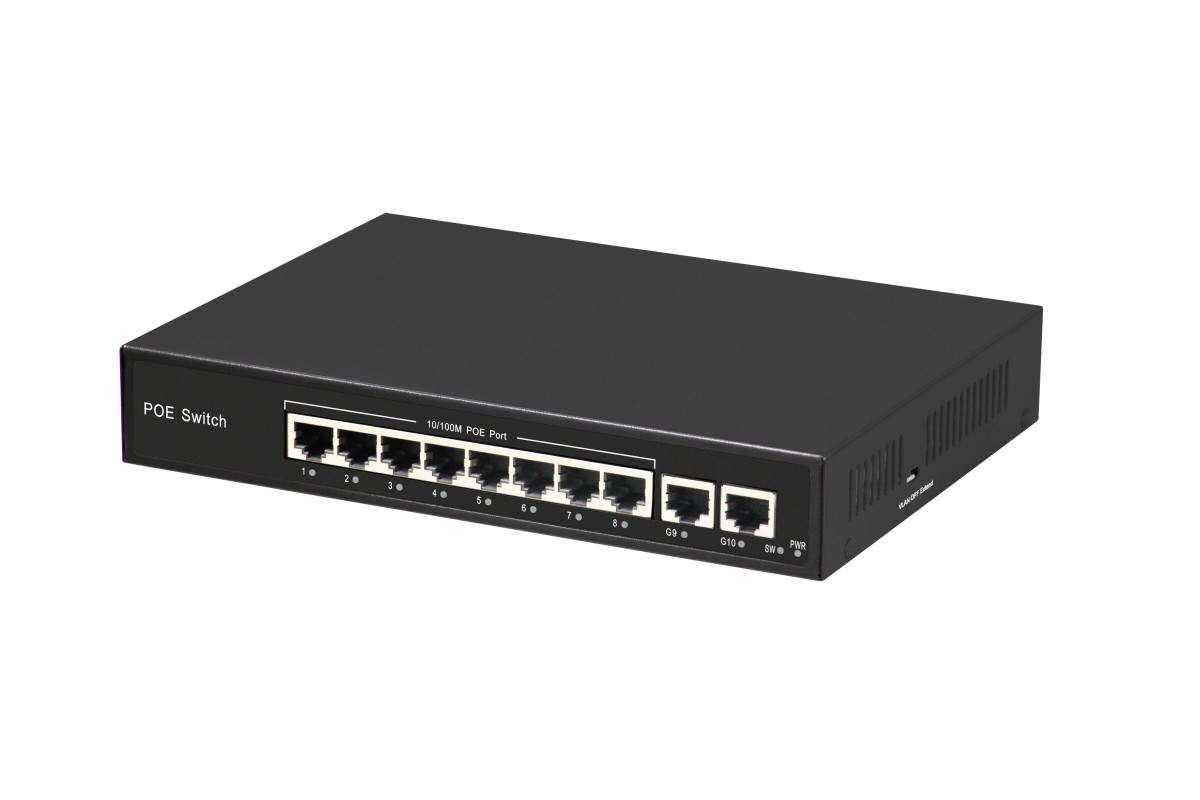

EL901-AF-82GN POE Switch 8 port
Bandwidth: 5.6Gbps, IEEE802.3af/at standard
Total power 150W, Single Port Max. 30W;
PoE: Automatic power off and restart if camera crash;
Vlan: Port isolation for network security;

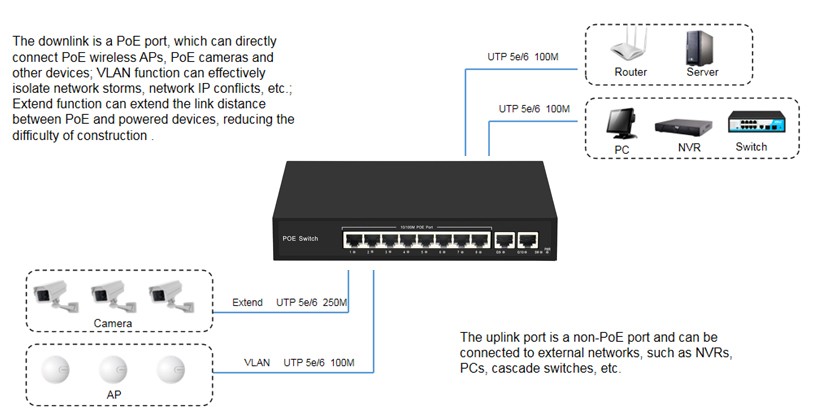

Extend: PoE data&power transmission max 250 meter;
Port anti-lightning 4kv,ESD 8kv; Power anti-lightning 4kv;
Power supplier: 52V/2.88A
PoE watch dog;
Desktop;
- Product Details
- Specifications
- Download
- Order Model
POE Switch 8 port

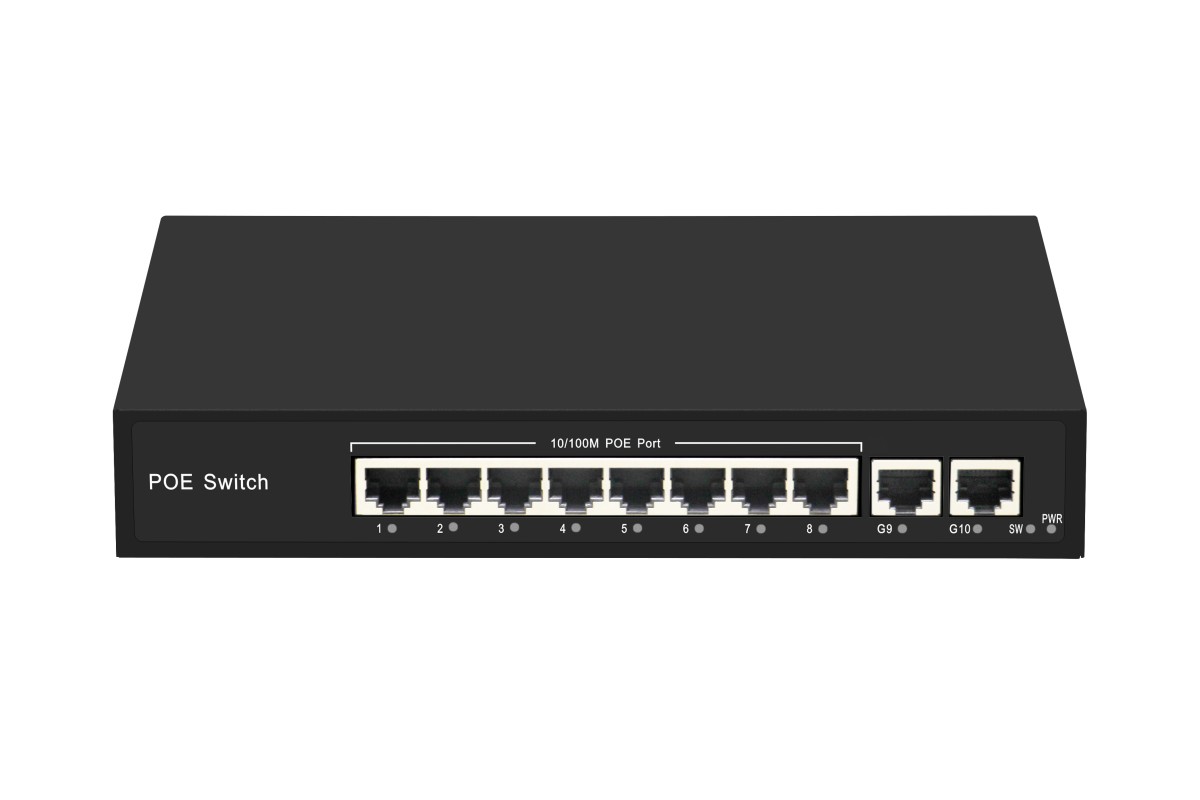

10-Ports PoE Switch with 8 PoE Ports +2 Gagibit Uplink Port
Product Name |
10-Ports PoE Switch with 8 PoE 10/100M Ports +2 Uplink 1000M |
|||||||||
Model |
EL901-AF-82GN |
|||||||||
Connector Type |
10* copper cable RJ45 ports (8*10/100M PoE ports + 2*1000M Uplink) |
|||||||||
Optical |
Multi mode fiber: 1310nm, 2Km Single mode fiber: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
|||||||||
Performance Specification |
Bandwidth: 5.6 Gbps (non-blocking) |
|||||||||
MAC: 2K |
||||||||||
Packet Buffer Memory: |
||||||||||
100M Packet Forwarding Rate: 0.1488Mpps/port 1000M Packet Forwarding Rate: 1.488Mpps/port |
||||||||||
MTBF: 100,000 hours |
||||||||||
Port Lightning Protection |
General Mode 4KV, Differential Mode 2KV, ESD 8KV. |
|||||||||
Network Protocols |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab |
|||||||||
PoE Standard |
IEEE 802.3af/at( each port 15.4W / 30W) |
|||||||||
POE Compatibility |
IEEE 802.3af/at adaptive |
|||||||||
POE power output |
DC48V |
|||||||||
Power Supply |

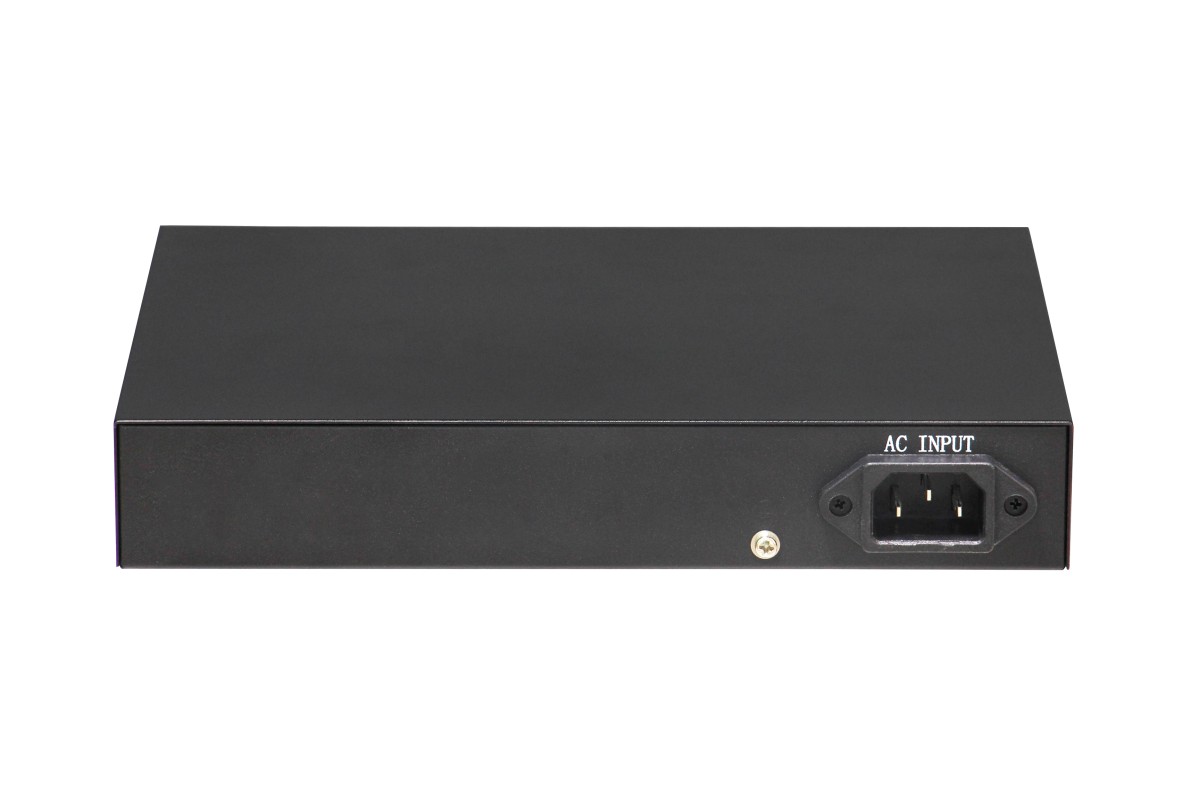

Power input: AC110-264V 50/60Hz; (every country use a custom power plug); 52V/2.88A |
|||||||||
PoE power pin |
12+,36- ( 45+,78- Optional) |
|||||||||
PoE Port Power |
15.4W /30W for each POE port |
|||||||||
PoE Feature |
All ports support MDI/MDIX |
|||||||||
Network Protocols |
Support IEEE802.3, IEEE802.3u, IEEE802.3x |
|||||||||
Network Media |
10BASE-T: Cat6 UTP(≤250 meter) ; 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
|||||||||
LED Indicator |
|
|||||||||
Working Environment |
Operating Temperature: -20 ° ~ 55° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: max 90%, non-condensing Storage Humidity: Max 95%, non-condensing |
|||||||||
Certification |
CE, CCC, FCC, RoHs |
|||||||||
Transmission Distance |
POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more ) Uplink transmission distance: 100meters( Uplink RJ45 port); Depend on your SFP module( Uplink SFP port) |
|||||||||
Others |
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard; Support port auto flip (Auto MDI/MDIX); Exchange mechanism using store-and-forward; All ports support wire-speed switching; Automatically supplied to adaptive devices; Panel indicator monitoring status and help failure analysis; |
|||||||||
Installation |
Desktop |
|||||||||
Physical |
Dimension(L×W×H): 320mm*210mm*45mm |
|||||||||
Warranty |
2 years warranty |
